Smart Wallbox EV Charger 22kW – Type 2 | CE Certified

Product Overview

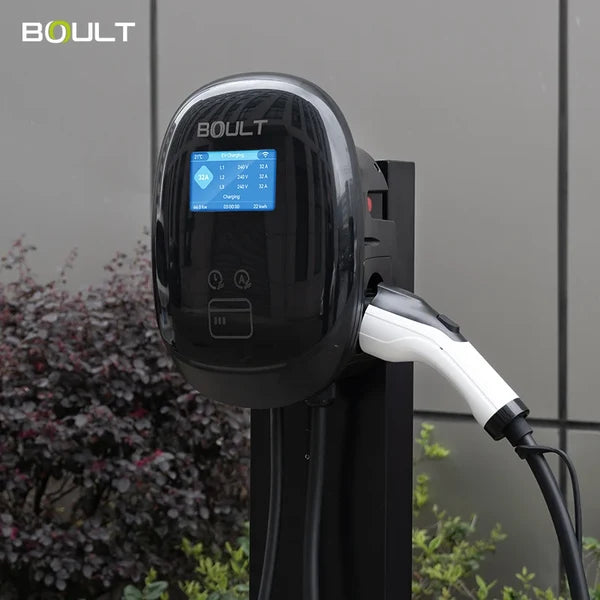

Charge your electric vehicle faster, smarter, and more safely with the Boult BDP01 Smart Wallbox EV Charger. Designed for residential villas, commercial parking facilities, workplaces, and fleet operators across the UAE, the BDP01 delivers reliable AC charging from 7kW up to 22kW while supporting GCC-standard Type 2 EV connectivity.

Built to withstand the demanding Gulf climate, the charger features an IP54-rated weatherproof enclosure, advanced electrical protection systems, and optional Wi-Fi/Bluetooth connectivity for intelligent charging management.

Key Features

✅ Fast AC Charging

Available power output up to 22kW for three phase EVs

Supports both 220V and 400V installations

Up to 32A charging current

✅ Universal Type 2 Compatibility

Compatible with most EVs sold in the UAE, including: Tesla, BMW, Mercedes-Benz, Audi, Polester, Porsche, ROX, BYD and others

✅ Built for UAE Weather

Operating temperature: -30°C to +55°C

Humidity resistance: 5%–95%

IP54-rated protection against dust and water

✅ Advanced Safety Protection

Over-voltage protection, Under-voltage protection, Over-current protection, Leakage current protection, Short-circuit protection, Lightning protection, Temperature monitoring

✅Smart User Interface

4.3-inch LCD display

LED charging status indicators

Real-time charging information

✅ WiFi & RFID Cards Connectivity & Controls

Can be controlled using Tuya App & RFID cards

Technical Specifications

Specification	Details
Model	Boult BDP01
Charging Power	Up to 22kW
Connector Type	Type 2 / GCC
Voltage	400V
Maximum Current	32A
Frequency	50Hz / 60Hz
Phase	3-Phase
RCD Protection	Type A
Display	4.3" LCD Screen
Connectivity	Wi-Fi (Tuya App)
Protection Rating	IP54
Certification	CE Certified
Housing Material	Acrylic & PC
Cable Material	TPU + Copper
Cable Length	5m
Dimensions	315 × 225 × 145 mm
Weight	Less than 5kg

What's Included

Boult BDP01 EV Charger (Type 2 Charging Cable), Wall Mounting Kit, Installation Guide

Wall EV Charger 22kW (GCC / Type 2)
